ZT7000J

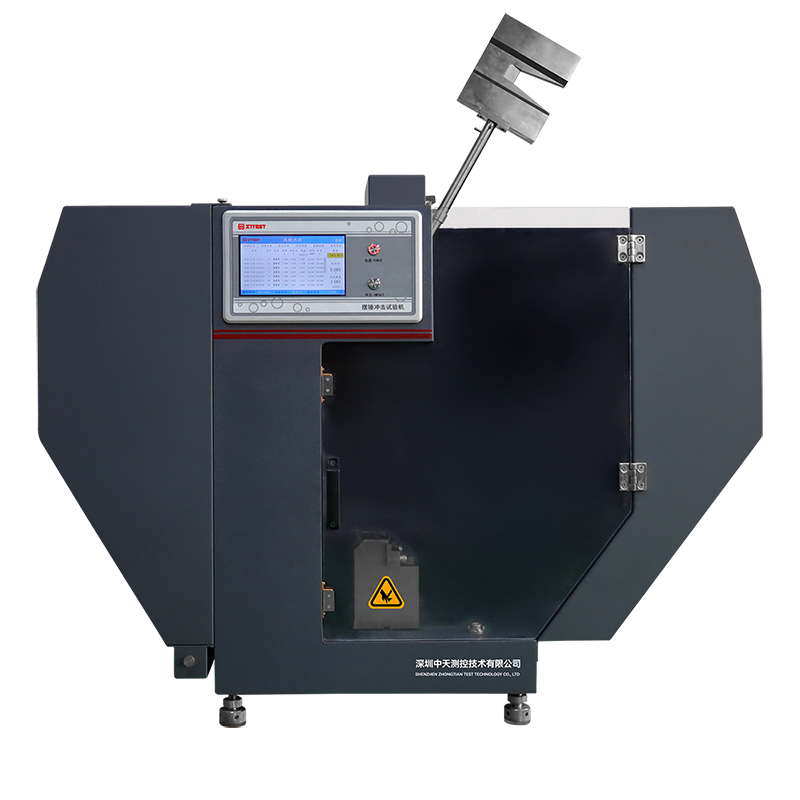

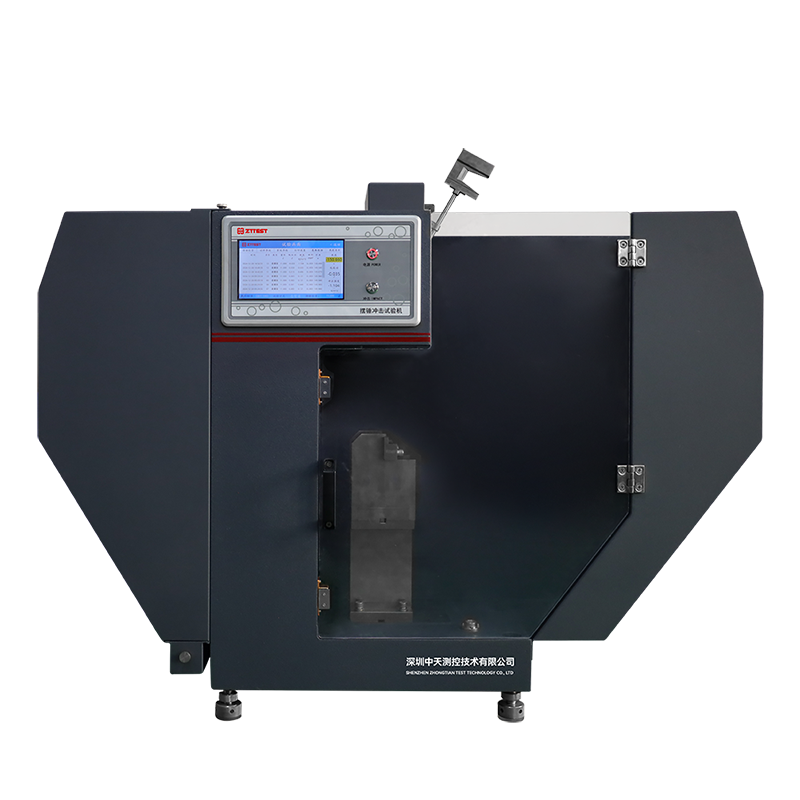

Charpy Impact Tester

The Charpy Impact Tester is a detection instrument used to evaluate the impact resistance performance of non-metallic materials (e.g., plastics, nylon, hard rubber, fiberglass-reinforced plastic (FRP), electrical insulating materials) under dynamic loads. This machine features semi-automatic control for user-friendly operation and high efficiency. Test data is automatically recorded after each impact. Its advantages are particularly evident in laboratories requiring continuous impact tests or manufacturers conducting large-scale testing. The dedicated control panel and display screen meet user requirements for operations and data visualization, such as displaying impact absorption energy, impact strength, pendulum swing angle, and printing test reports. This machine supports both Charpy (simple beam) and Izod (cantilever beam) tests, with easily adjustable and replaceable supports, making it an essential tool for rigid plastic manufacturers, quality inspection agencies, and research institutes.

Consultation Hotline:18897911635

Product Consultation Download

Technical Indicators

Maximum Impact Energy

25J
Pendulum Moment (Charpy)

2.1436 N·m
Pendulum Pre-lift Angle

150º
Angle Resolution

0.1º
Dimensions (L×W×H)

Approx. 360 mm × 240 mm × 720 mm
Weight

Approx. 70 kg
Power Supply

Single-phase AC 220V±10%, 50Hz, 0.5kW

Product Advantages

01

Automatic Data Acquisition

Ideal for laboratories and manufacturers requiring continuous or high-volume impact testing.
02

Dual Functionality

Supports both Charpy (simple beam) and Izod (cantilever beam) tests. Adjustable supports enhance versatility.
03

Wide Application Range

Tests impact resistance of non-metallic materials such as plastics, nylon, hard rubber, FRP, and electrical insulating materials under dynamic loads.
04

Compliance with Multiple Standards

Compatible with GB, ISO, JB/T, and other international standards for testing and data processing.
05

User-Friendly & Efficient

Semi-automatic control ensures ease of operation and high productivity.

Relevant Standards

GB/T 1043-2008

《Test Method for Charpy Impact Properties of Rigid Plastics》
GB/T 1843-1996

《Plastics—Determination of Izod Impact Strength》
JB/T 8761-1998

《Plastics Cantilever Beam Impact Testing Machine》
JB/T 8762-1998

《Plastics Charpy Impact Testing Machine》
ISO 179:2000

《Plastics—Determination of Charpy Impact Properties》
ISO 180:2000

《Plastics—Determination of Izod Impact Strength》
